STM32F4 Discovery Shield is an extension for STM32F4 Discovery Board from STMicroelectronics. It carries four mikroBUS host sockets, USB-UART module and CAN transceiver. Use it to quickly turn your Discovery board into a RFid lock, SMS-triggered control switch, GPS tracking device, full-blown weather station, or whatever else you have in mind. Assemble your prototypes quickly using Click additional boards. Just snap them into mikroBUS sockets, like LEGO blocks. Click boards come with examples written in mikroElektronika ARM compilers, so you have a great code base for your future projects.
| Type | Shield |
| Applications | STM32F4 Discovery Shield allows you to use click additional boards from MikroElektronika on your STM32F4 Discovery |
| On-board modules | Four mikroBUS host sockets, USB-UART module and CAN transceiver |
| Key Features | On-board USB-UART module (FT232RL) and CAN transceiver (SN65HVD230). Four mikroBUS host connectors for attaching Click add-on boards. |
| Key Benefits | Screw holes in corners simplify integration. A perfect workstation for your Discovery projects |
| Interface | USB |
| Integration | mikroBUS |
| Compatibility | Discovery |
Clicks
test

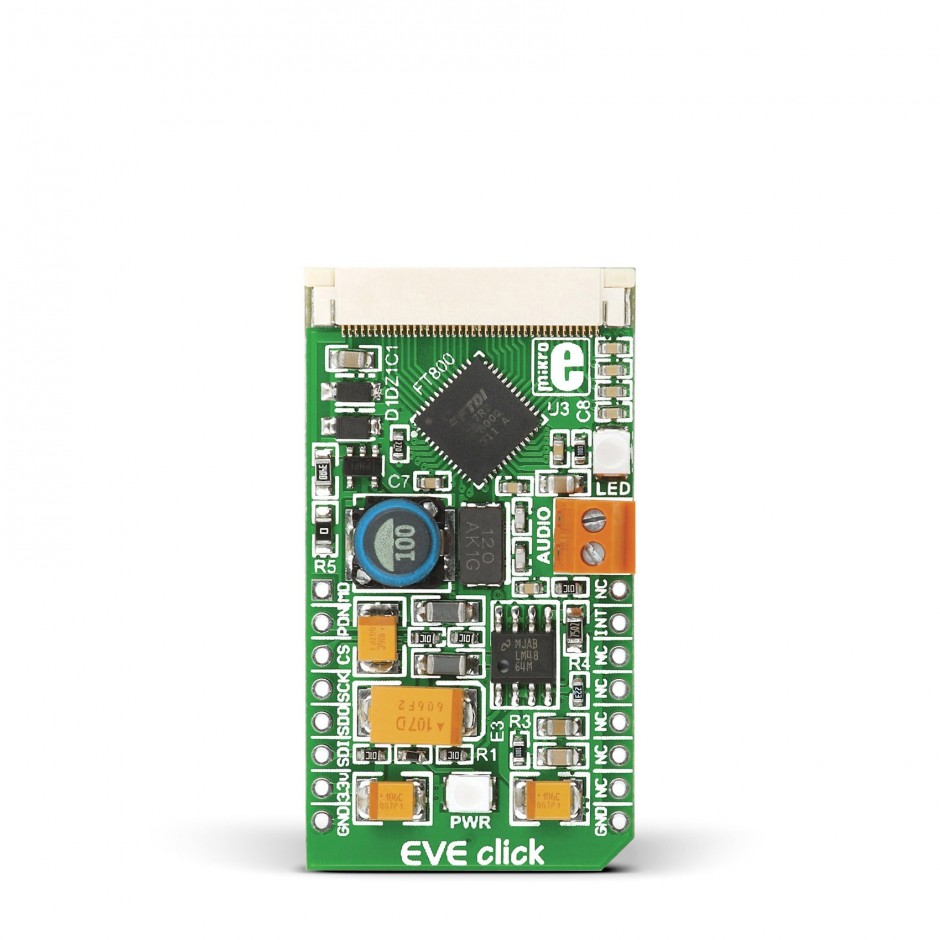

EVE Click
|
EVE Click is a display controller board in mikroBUS form factor. It features state-of-the-art FT800Q graphics controller which integrates display, audio and touch onto a low cost, easy-to-use, single-chip solution. |
4.3" TFT Color Display with Resistive Touch Screen
|
4.3" TFT Color Display 480x272 with Touch Screen is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, and a backlight unit. The 4.3" display area has a 480 x 272 px resolution and can display up to 262K colors. |

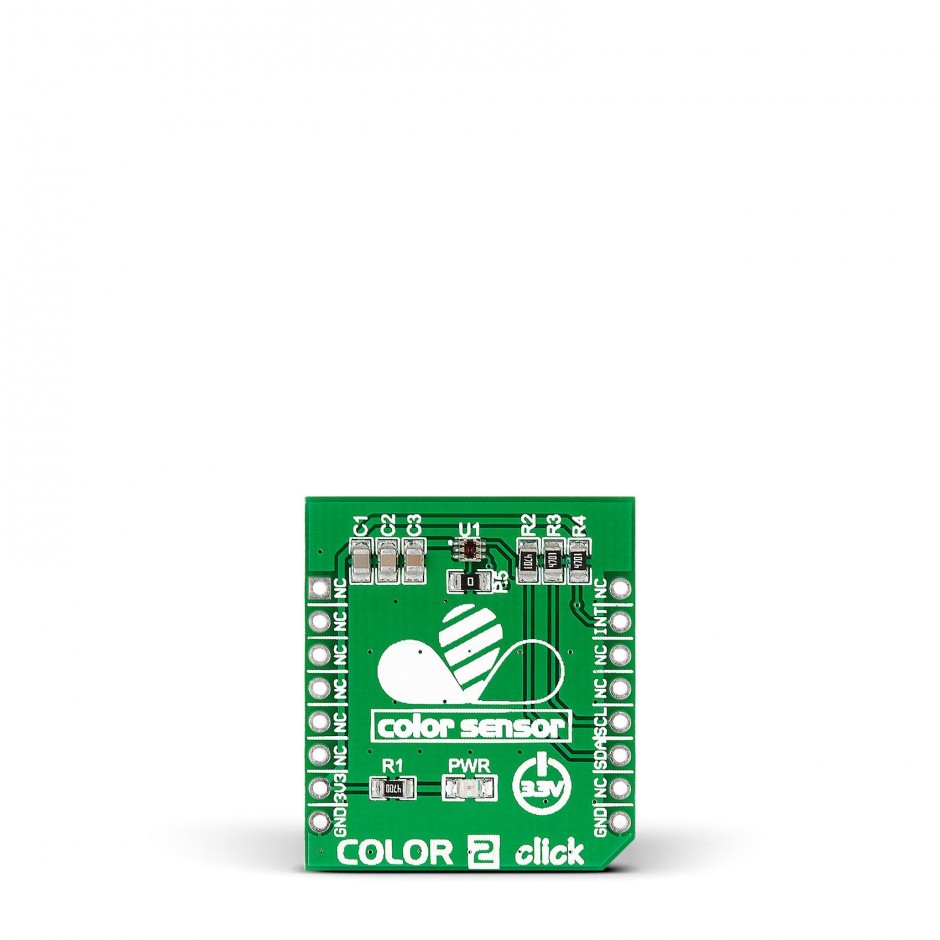

Color 2 Click
|
Color 2 click carries the ISL29125 RGB color light sensor. It detects red, green and blue in a variety of lighting conditions, outputting 16-bit resolution data in a measuring range from 5.7 m lux to 10,000 lux. |

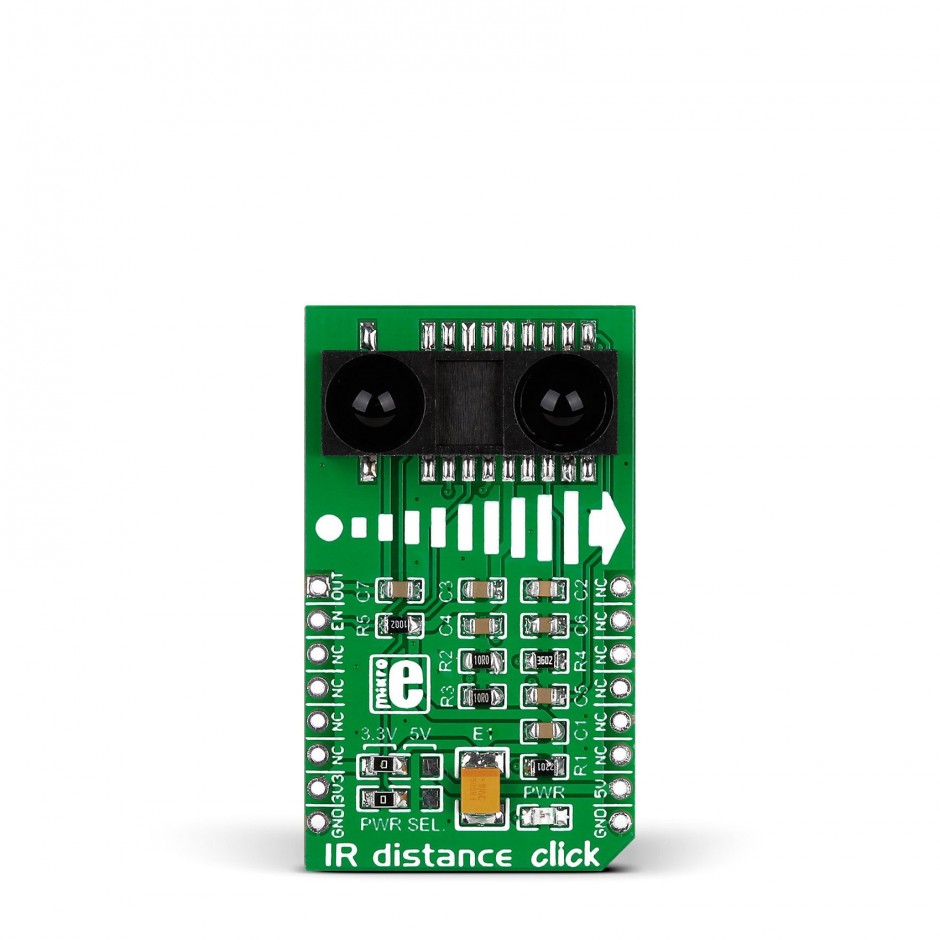

IR distance click
|
IR distance click carries Sharp’s GP2Y0A60SZ0F distance measuring sensor, which comprises of an integrated PSD (position sensitive detector), an infrared LED and a signal processing circuit. The measuring range is between 10 and 150 cm. The click is designed to run on either 3.3V or 5V power supply. It communicates with the target MCU over RST and AN pin on the mikroBUS™ line. |

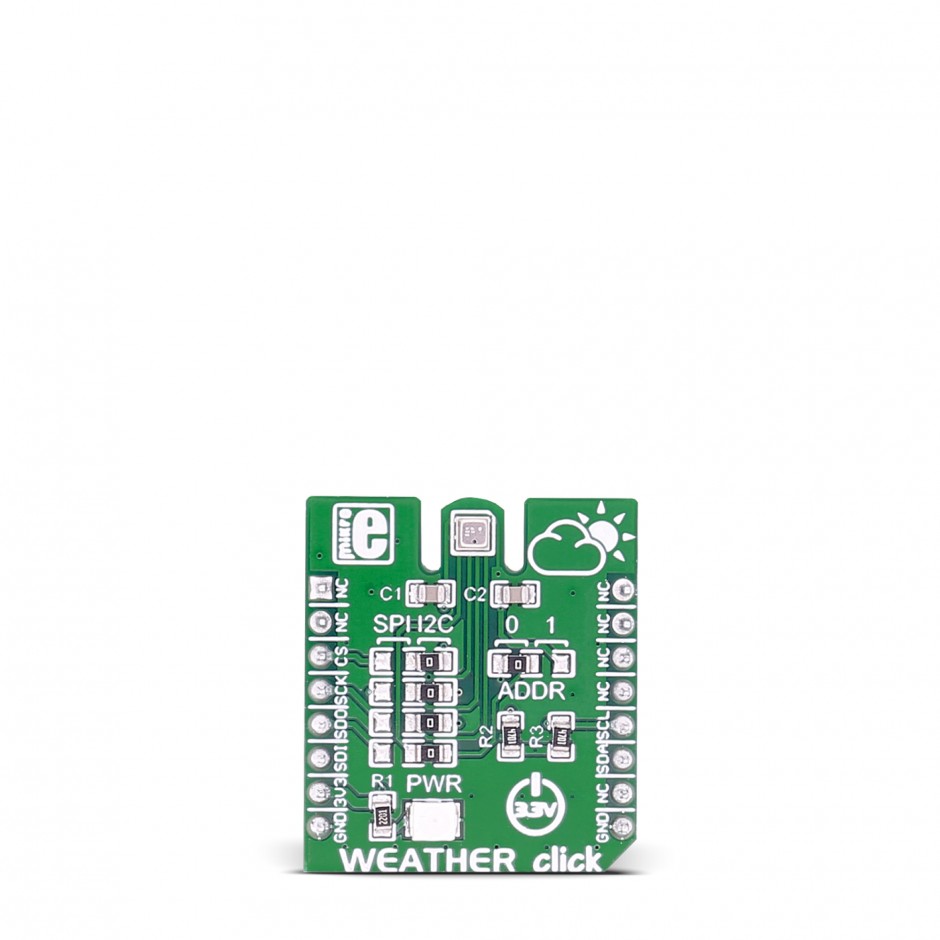

Weather click
|
Weather click carries BME280 integrated environmental unit from Bosch. It’s a sensor that detects humidity, pressure, and temperature, specifically designed for low current consumption and long-term stability. The click is designed to work on a 3.3V power supply. It communicates with the target microcontroller over SPI or I2C interface. |

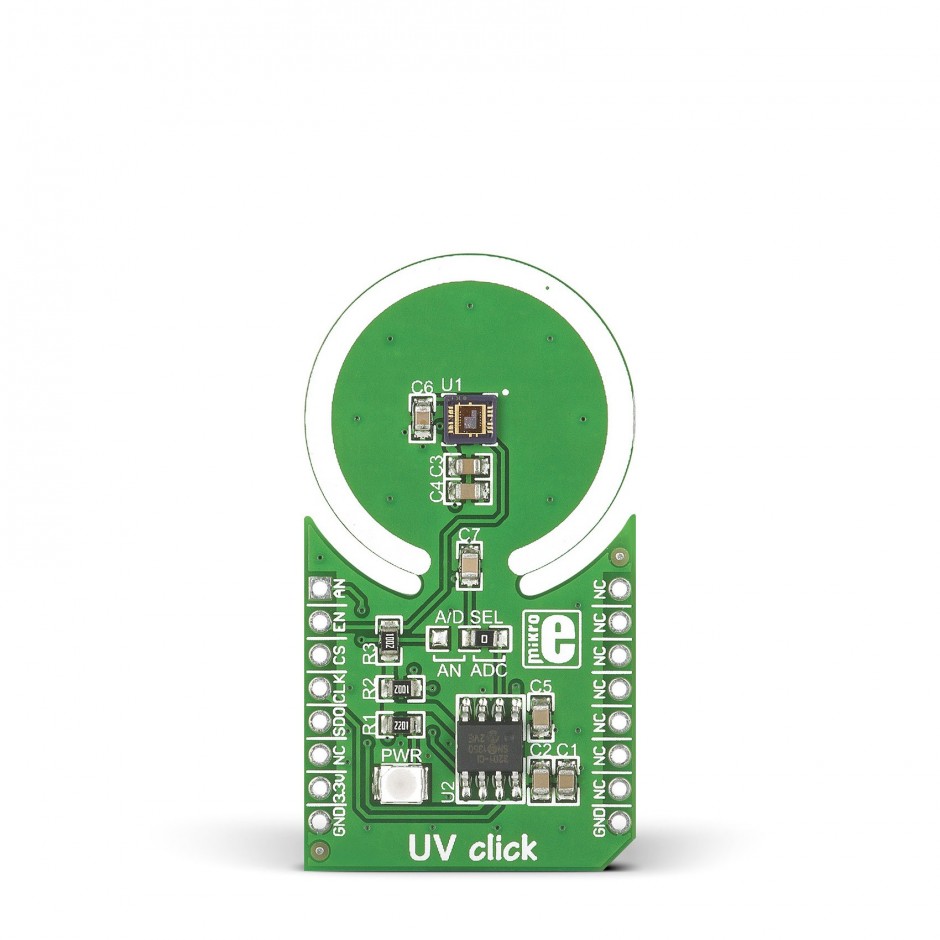

UV click
|
Design devices that warn you of excesive ultraviolet radiation levels with UV click. This click boards carries the ML8511 IC that is sensitive to UV-A (365-315 nm) and UV-B (315-280 nm) rays. |

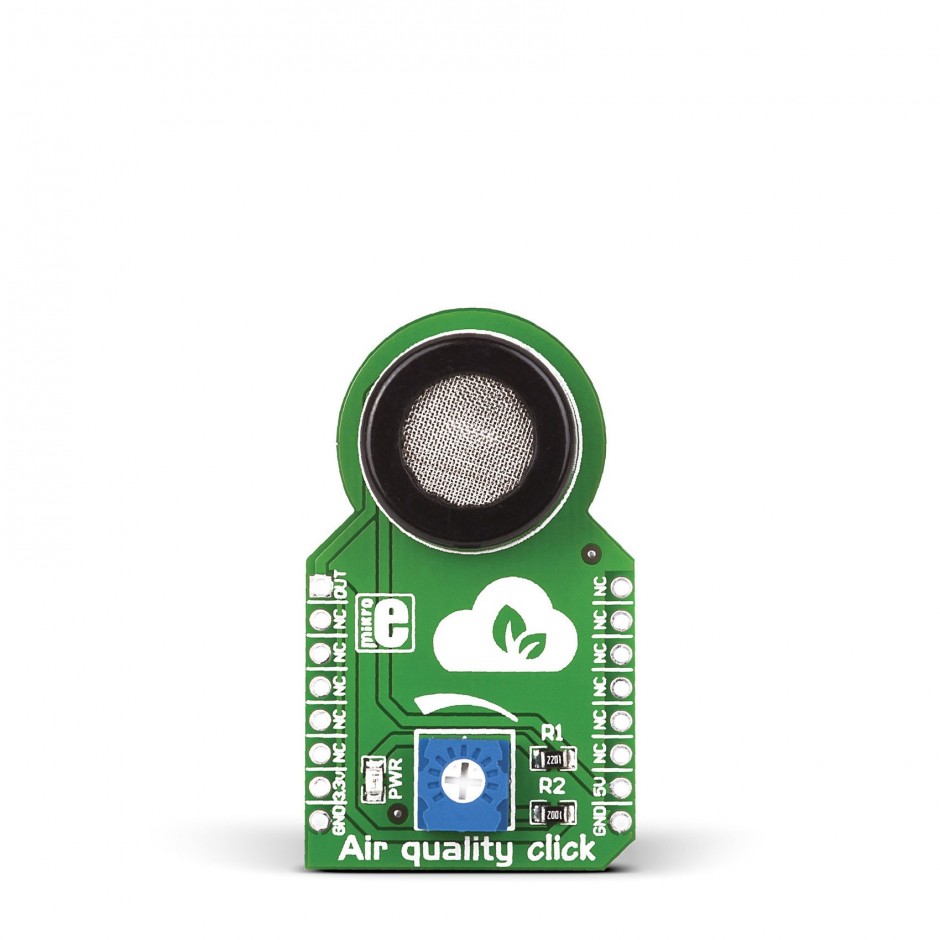

Air quality click
|
Air quality click carries an MQ-135 sensor for detecting poisonous gases that impact air quality in homes and offices. The click is designed to run on a 5V power supply. It communicates with the target microcontroller over the AN pin on the mikroBUS™ line. |

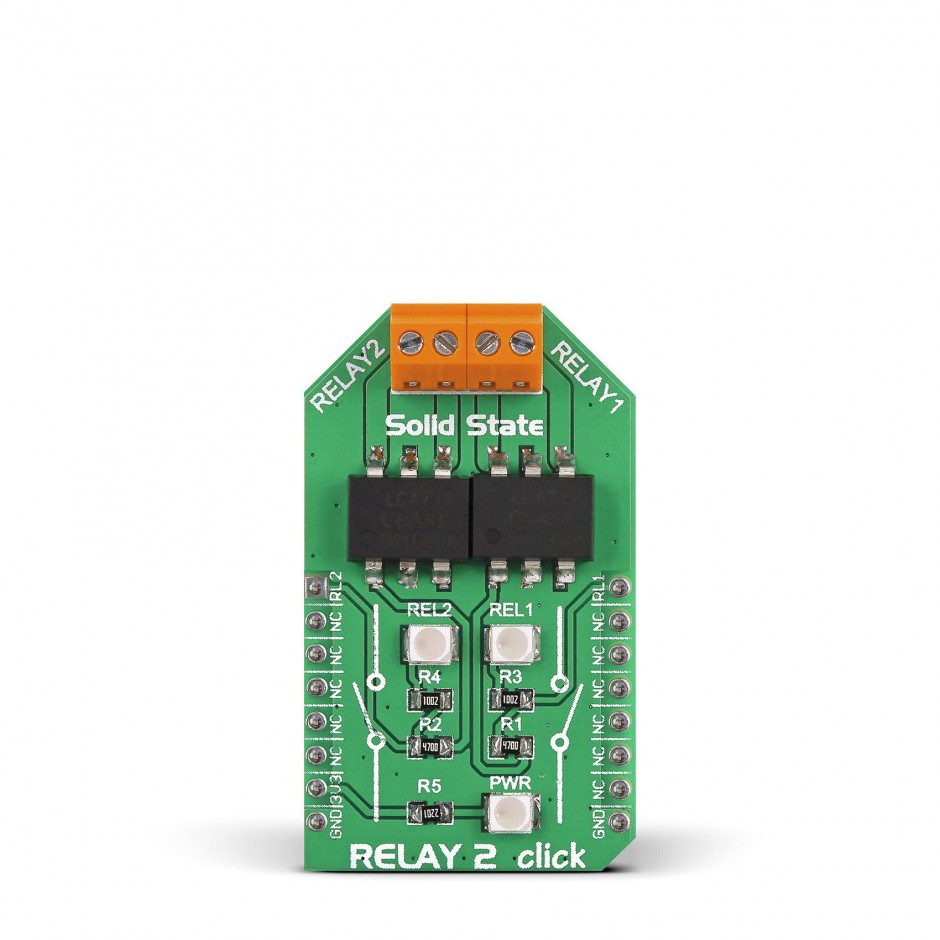

Relay 2 click
|
Relay 2 click is a dual relay click board™, equipped with two single-pole solid state relays (SSR), built with the patented OptoMOS® technology. These SSR devices allow reasonably high current, up to 2A and voltage up to 30V (peak-to-peak). These relays also allow very fast switching time, thanks to the absence of any moving parts inside of them. Compared to a mechanical relays, solid state relays offer a whole range of advantages, such as very high reliability, arc-free operation with no snubbing circuits required, great input/output galvanic isolation, no EM/RF interferences, low driving power needed, resistance to wear over time since they do not use any mechanical parts, and much more compact sizes, compared with the traditional mechanical relays. |

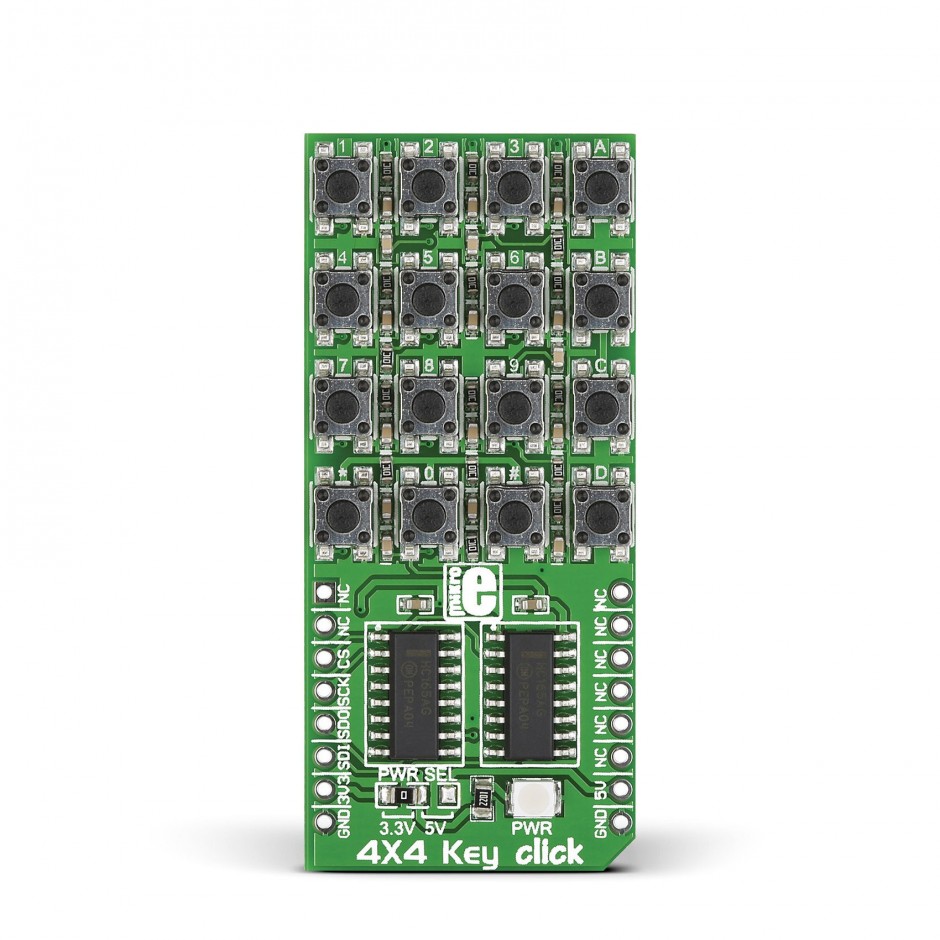

4x4 Key click
|
4x4 Key click carries a 16 button keypad. The design of the board — inputs are read by a pair of connected 8-bit parallel-in serial-out shift registers — allows for multiple key presses at the same time. |

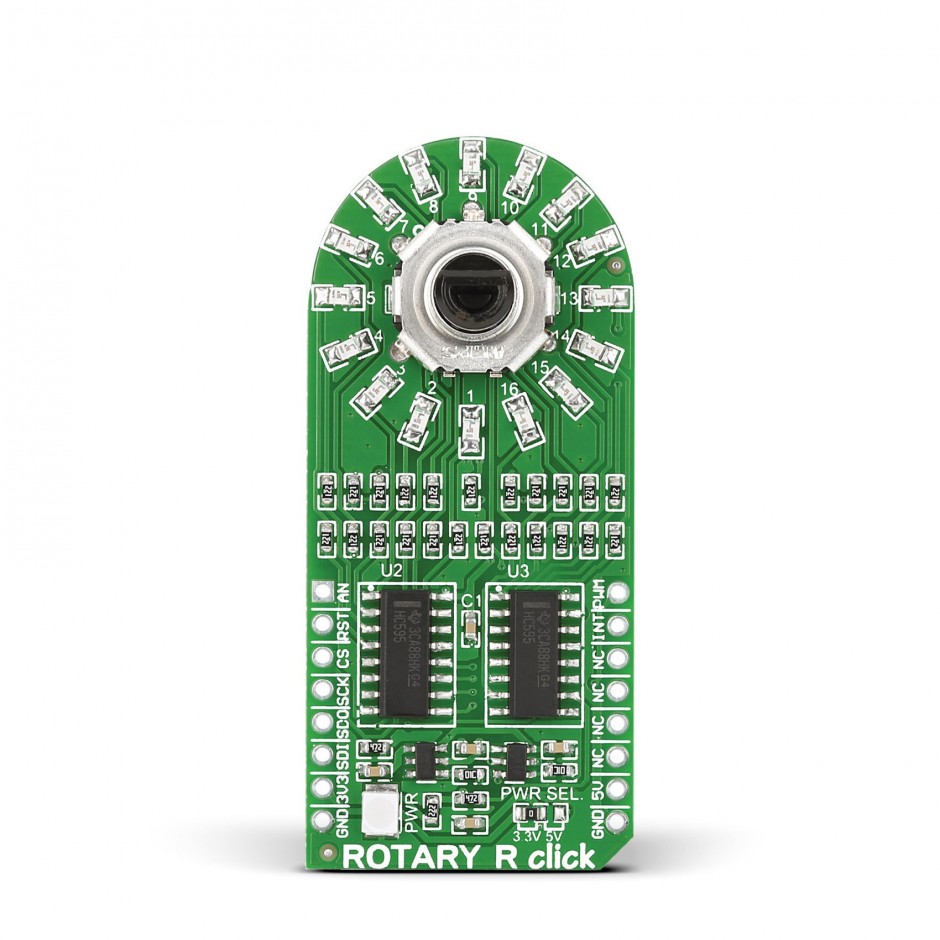

ROTARY R click
|
Rotary click carries a 15-pulse incremental rotary encoder with detents, surrounded by a ring of 16 red LEDs. It’s a perfect solution for adding a precision input knob to your design. |

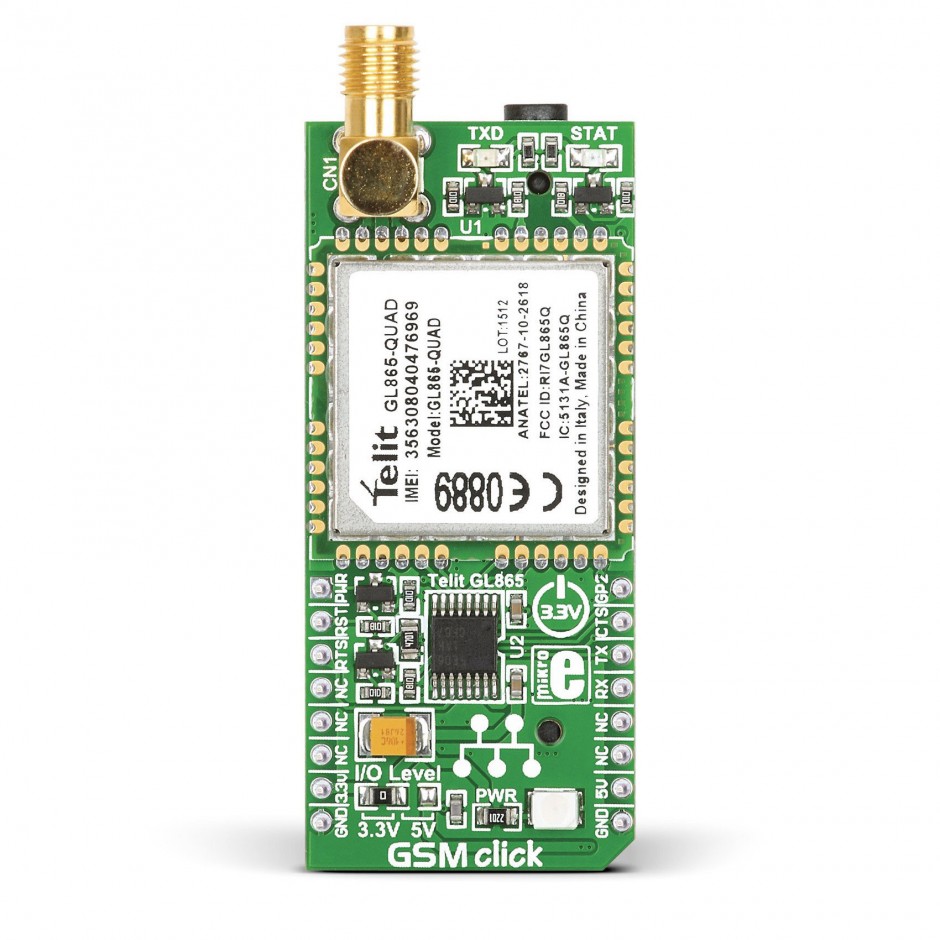

GSM Click
|
GSM click is a compact and powerful GSM cellular network communication solution, featuring the GSM/GPRS Telit GL865-QUAD module. This module features a full set of options for the cellular networking and communication, such as the network status indication, jamming detection, embedded TCP/IP stack, including TCP, IP, UDP, SMTP, ICMP and FTP protocols, full GPRS class 10 implementation; GSM supplementary functions such as the call barring, waiting, forwarding, and holding, calling line identification presentation or restriction (CLIP/CLIR), integrated voice communication codecs, and more. This module also features an embedded Python Script interpreter, allowing users to run scripts from inside the module. |

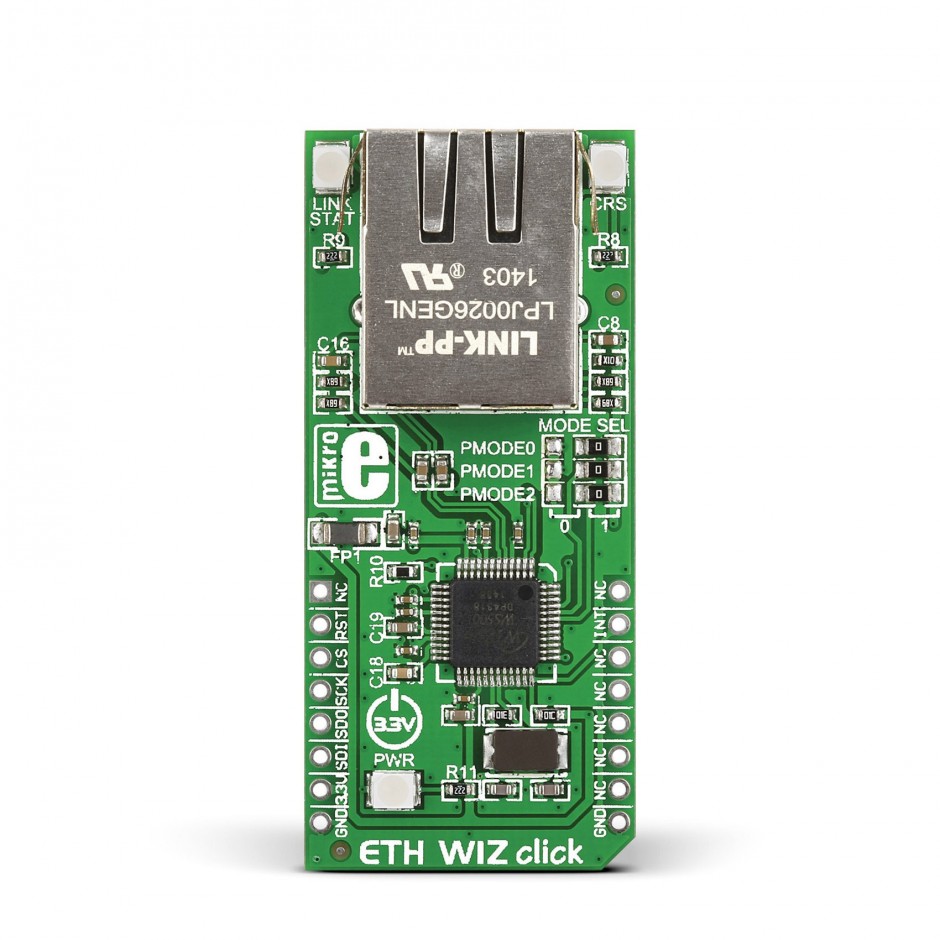

ETH WIZ click
|
ETH Wiz click carries W5500, a 48-pin, 10/100 BASE-TX standalone ethernet controller with a hardwired TCP/IP Internet protocol offload engine, along with a standard RJ-45 connector. |

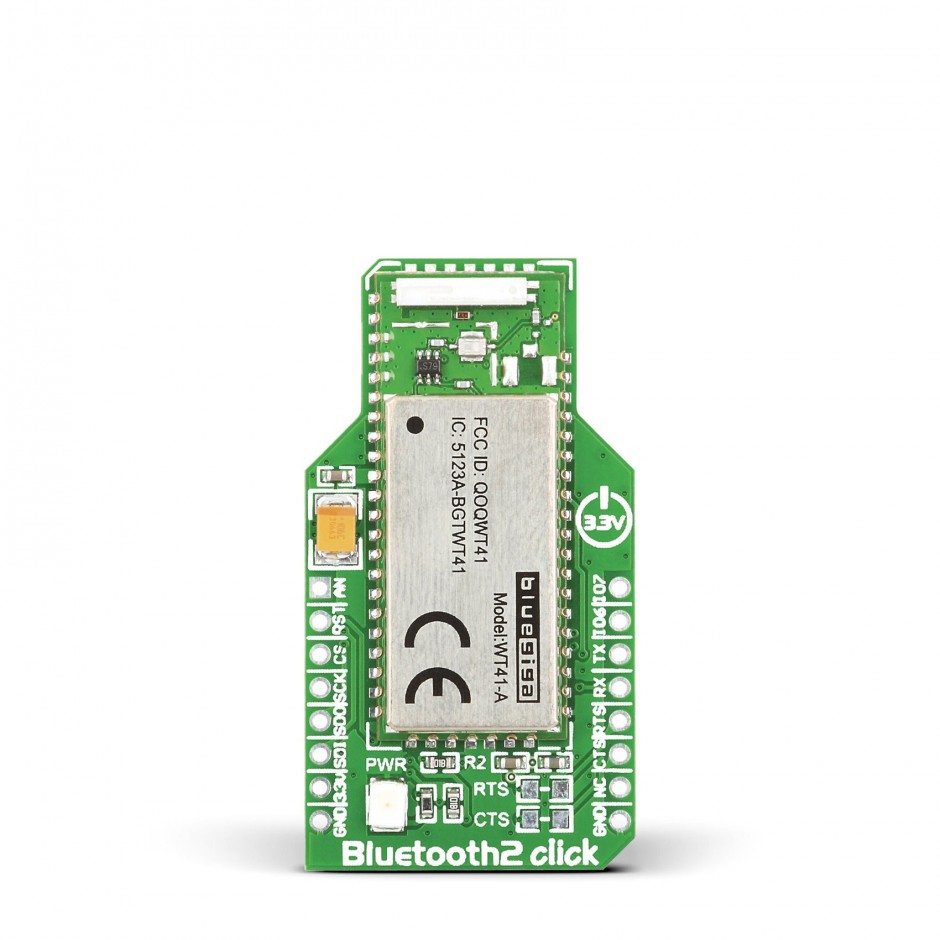

Bluetooth 2 click
|
Bluetooth2 Click features BLUEGIGA WT41 Bluetooth® 2.1 module with operating range of 1000m (between two WT41 modules). |

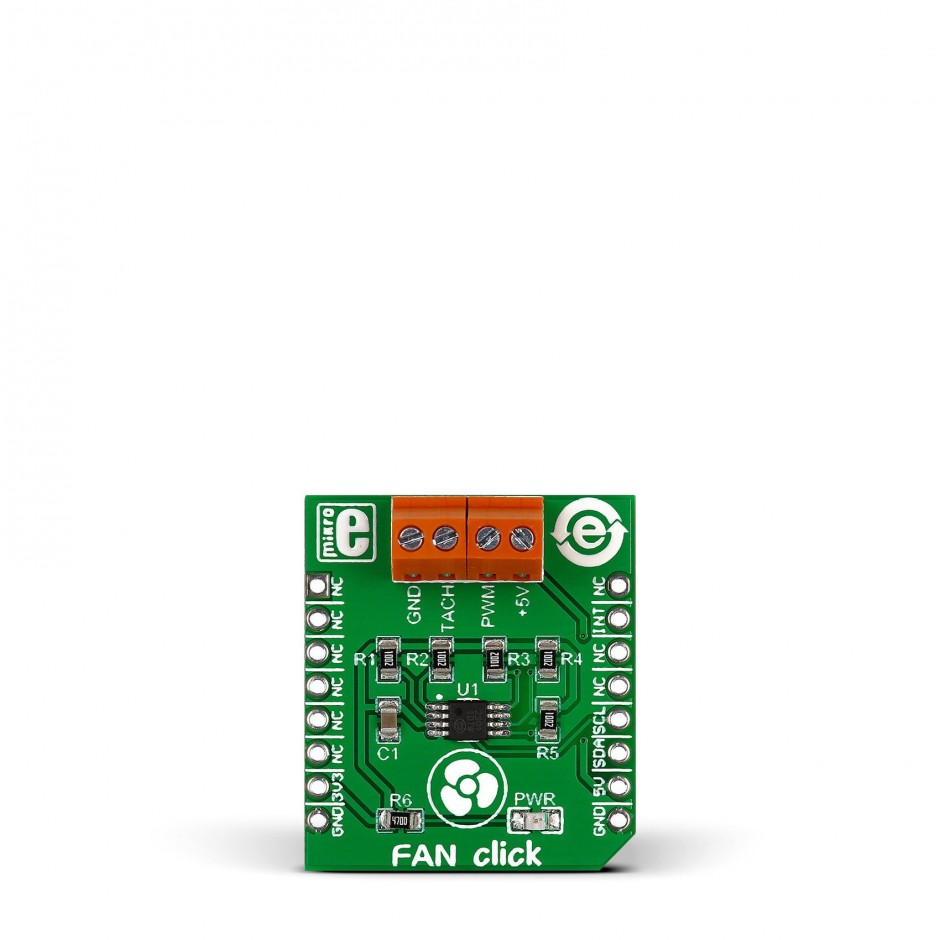

Fan click
|
Fan click carries an EMC2301 controller for powering and regulating the operation of 5V four-wire fans, which are commonly utilized as coolers in computers and other electronics. |

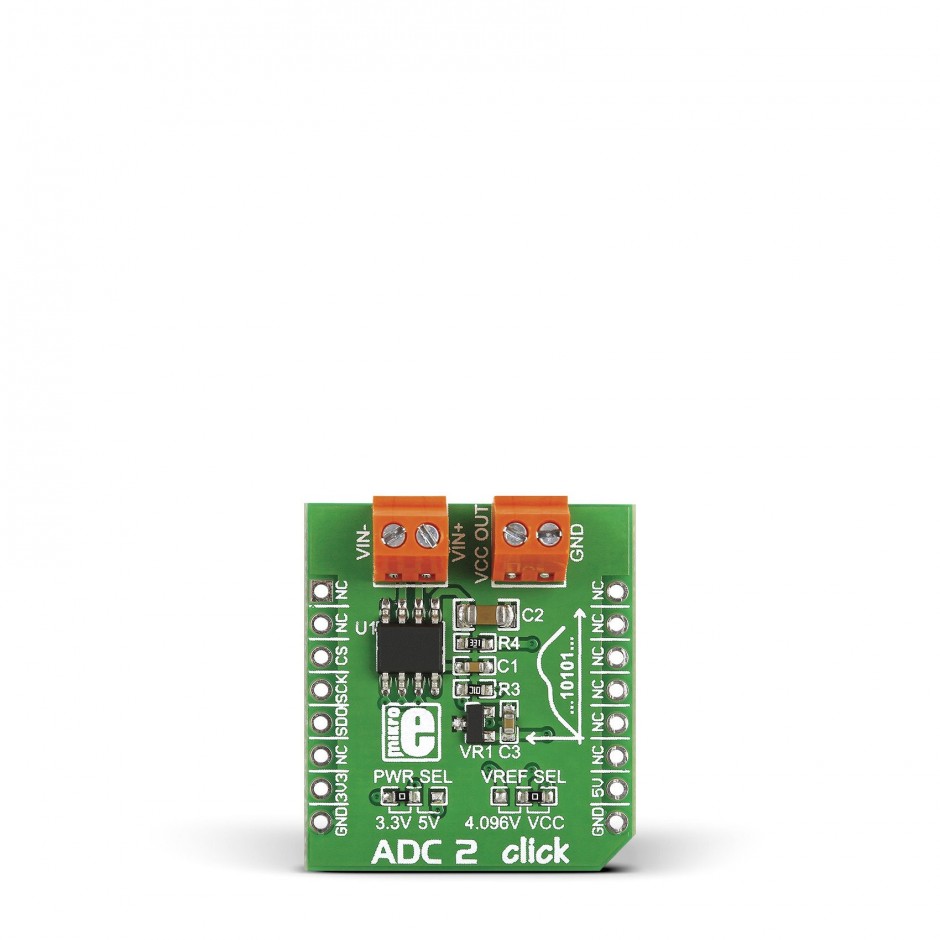

ADC2 click
|
ADC 2 click carries MCP3551/3, which is a 22-bit ADC with automatic internal offset and gain calibration. This high precision analog-to-digital converter has total unadjusted error of less than 10 ppm, and low-output noise of 2.5 µV RMS. |

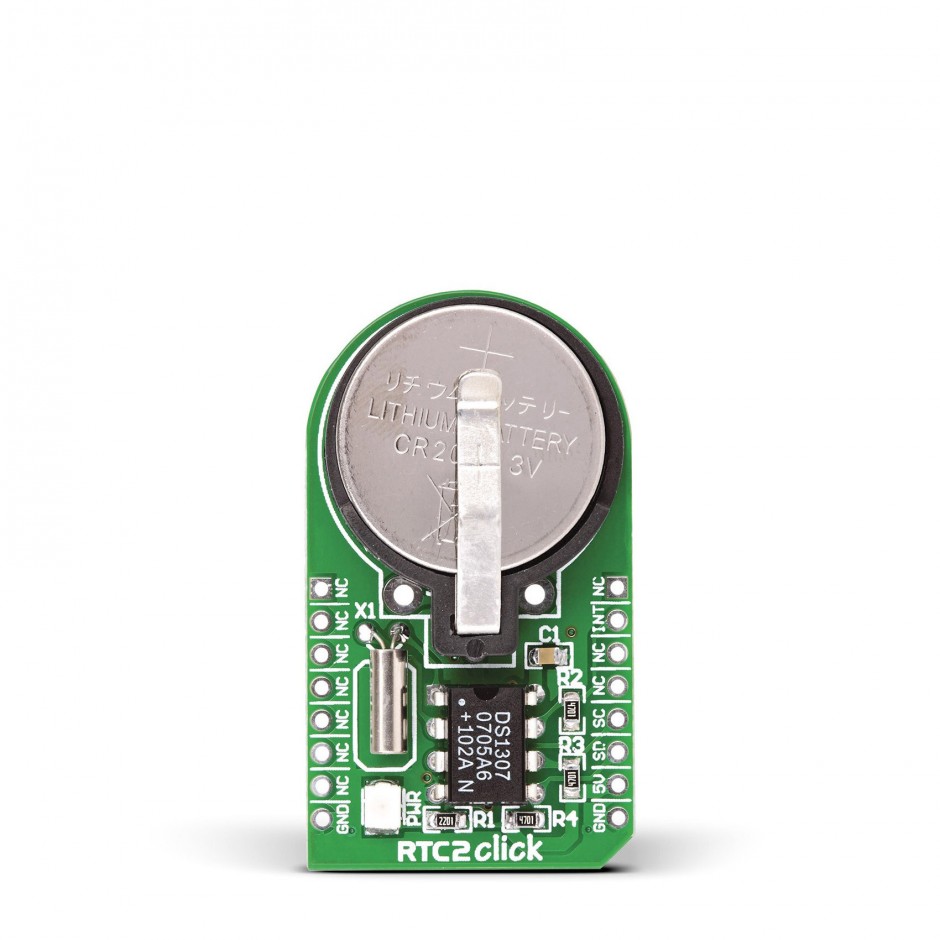

RTC2 click
|
RTC2 Click is an accessory board in mikroBus™ form factor. It features the DS1307 serial real-time clock (RTC). It is a low-power, full binary-coded decimal (BCD) clock/calendar with programmable square-wave output signal. |
